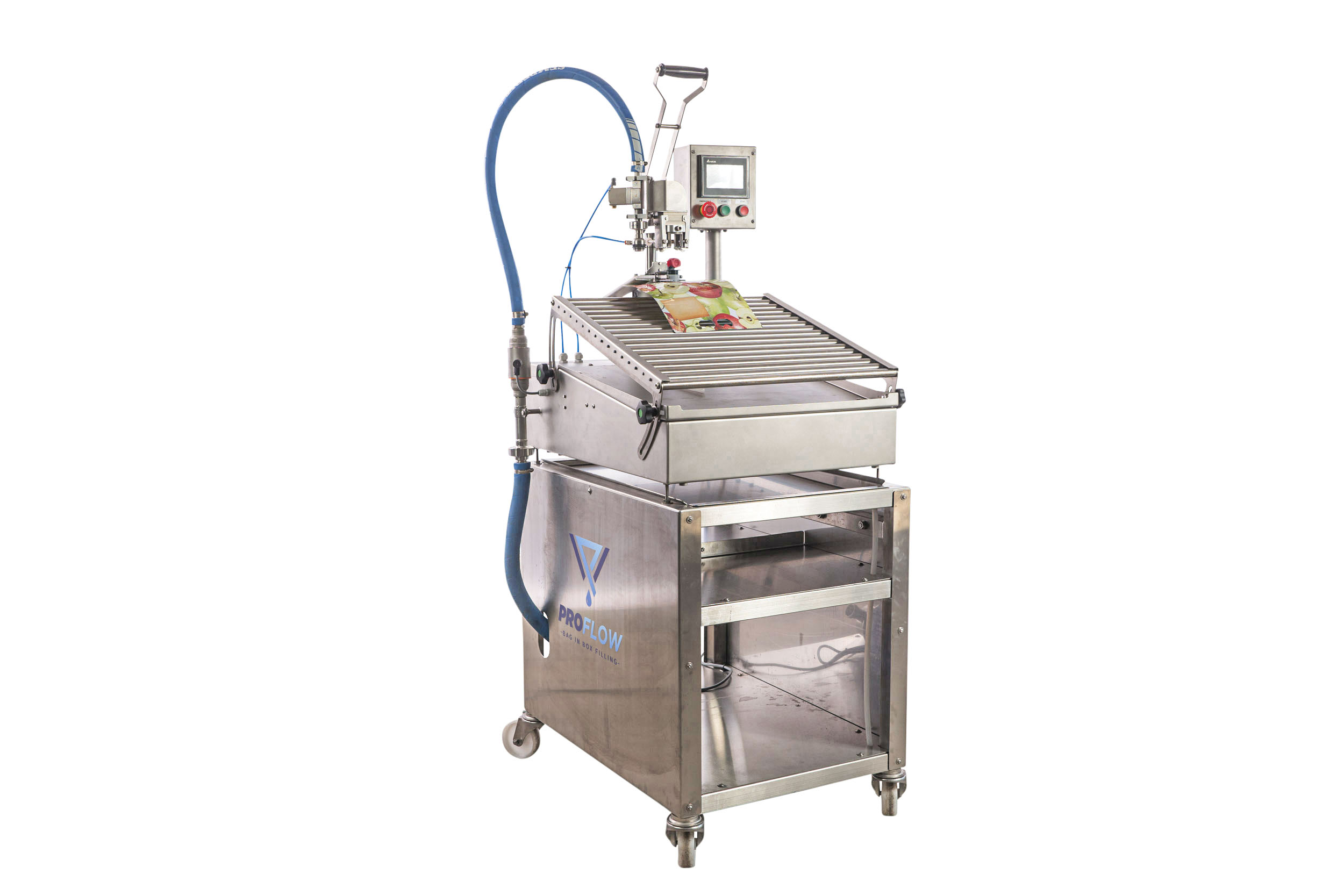

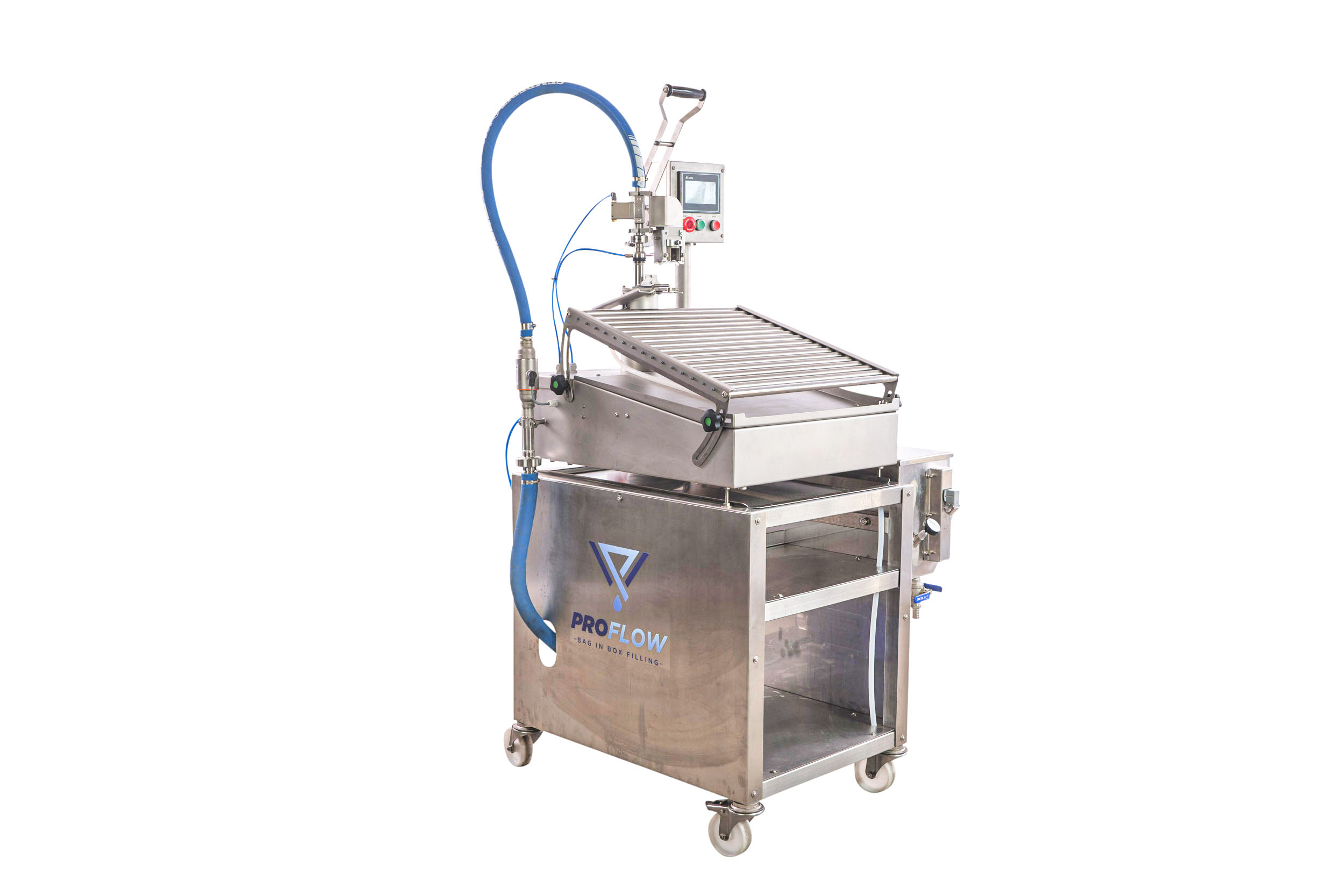

Bag in Box filling machine SEMIFLOW is designed for filling hot and cold liquids into Bag in Box and Stand up Pouch packaging.

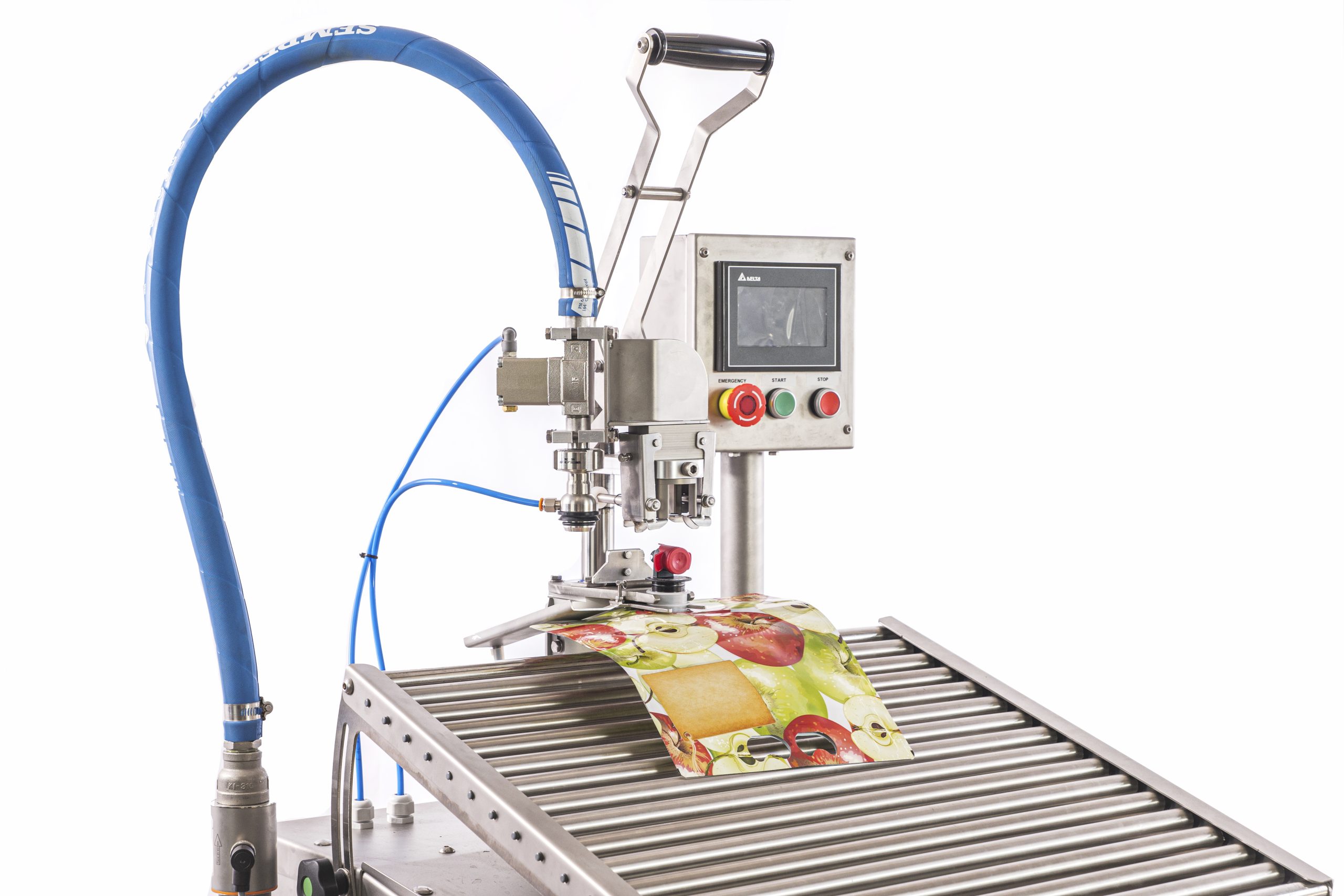

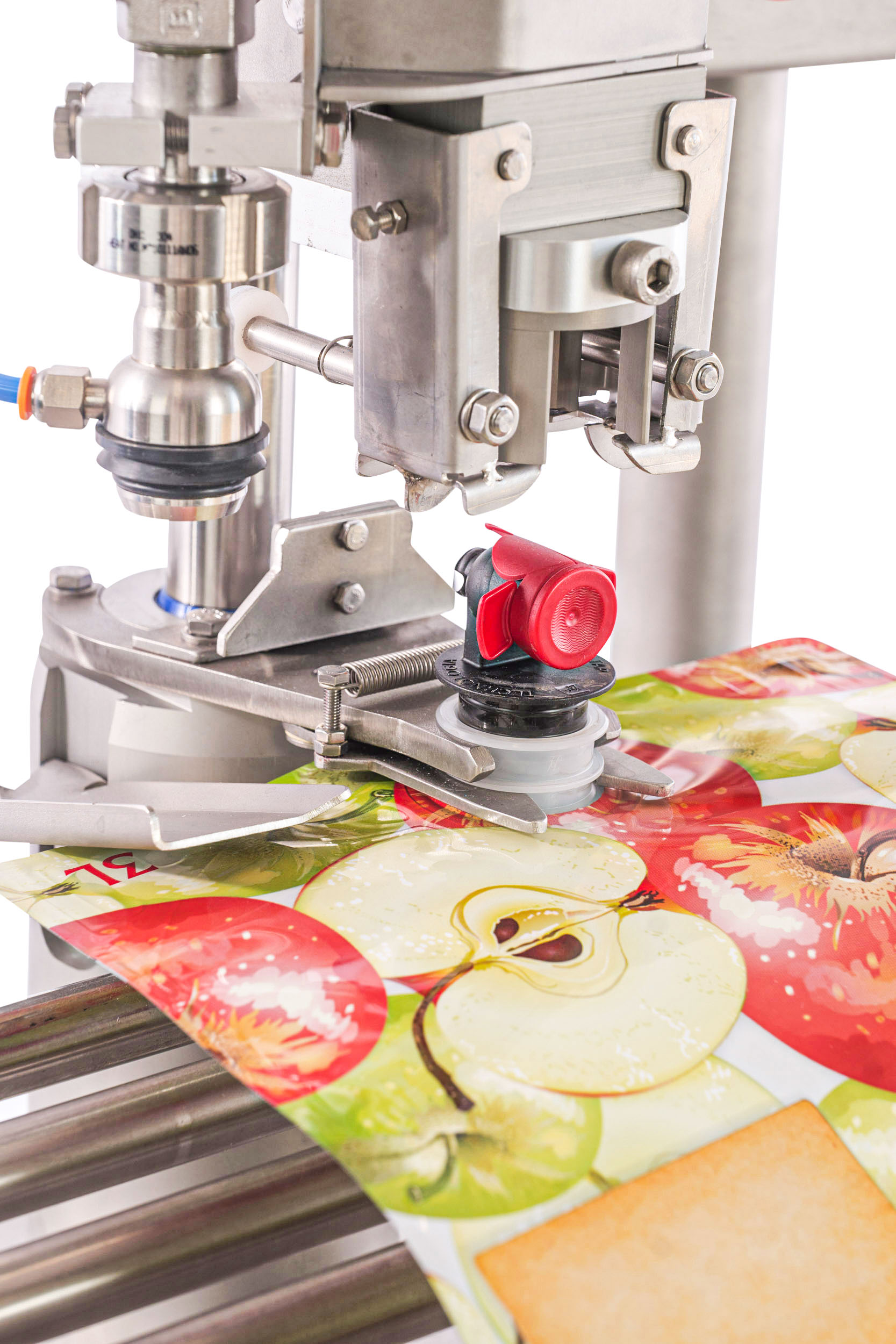

Machine fills packages automatically. Just insert the bag or pouch into the Bag in Box filler and pull the handle. After the package is filled, return the filling handle into start position and cap the bag.
Capacity – 250 pcs. of 3 L bags/h
-
- Perfect for filling various liquids: from juice, wine, milk to broth, oil, soap, etc.
-
- Fills Bag in Box bags in sizes 1–30 L, Stand up Pouch packages in sizes 0,75–5 L.
-
- Suitable for both hot and cold filling.
-
- Machine fills both Bag in Box and Stand up Pouch packages with a tap.
-

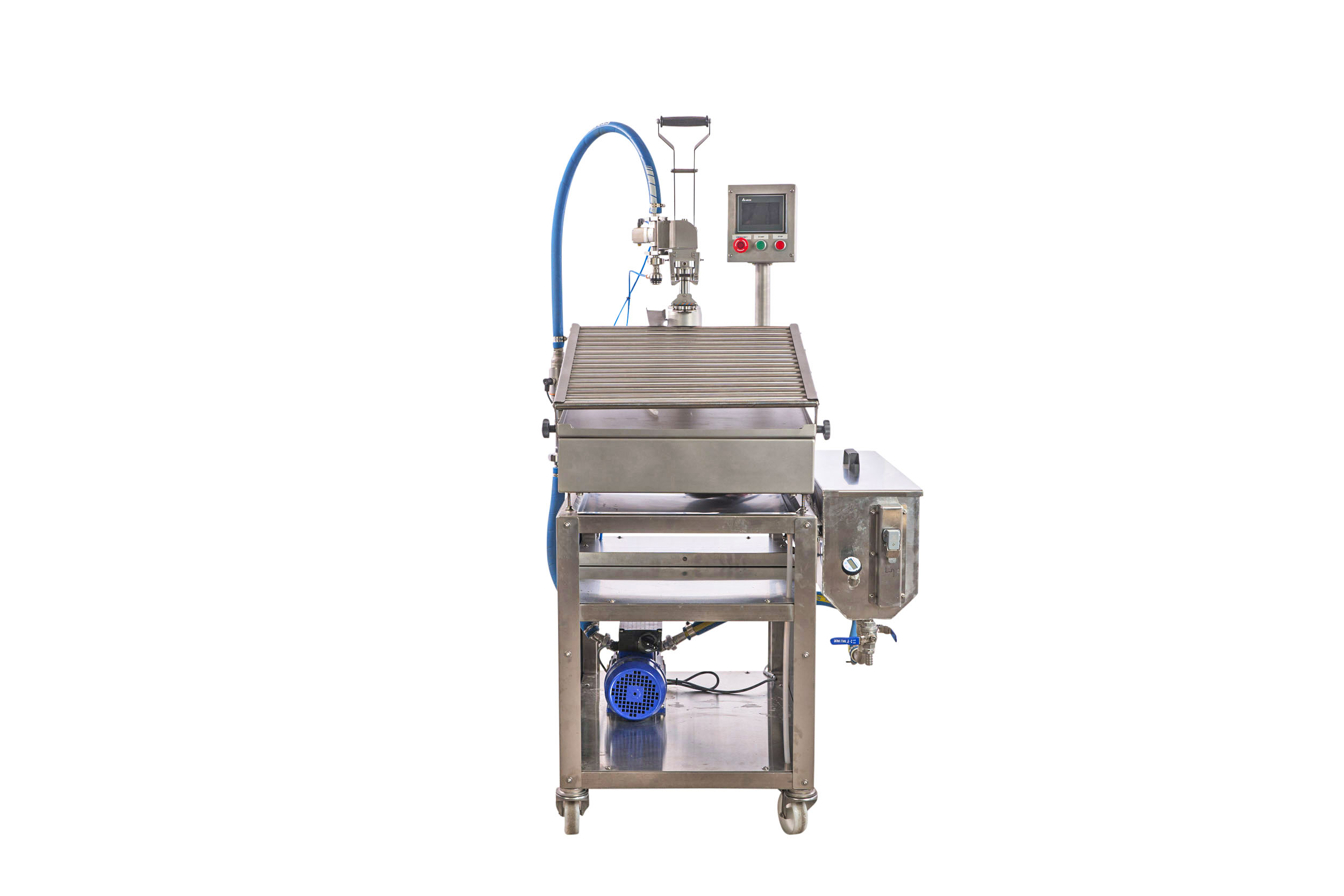

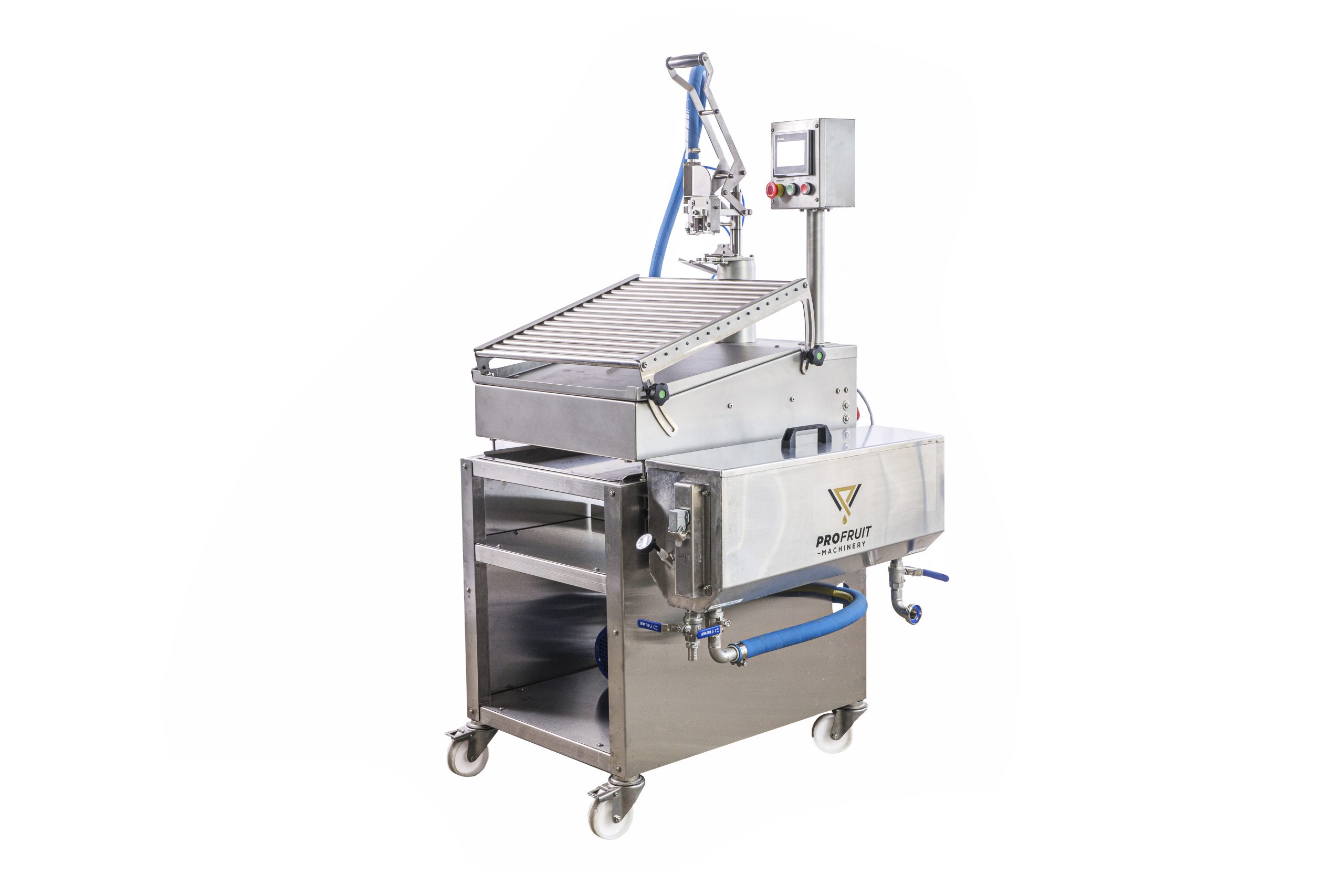

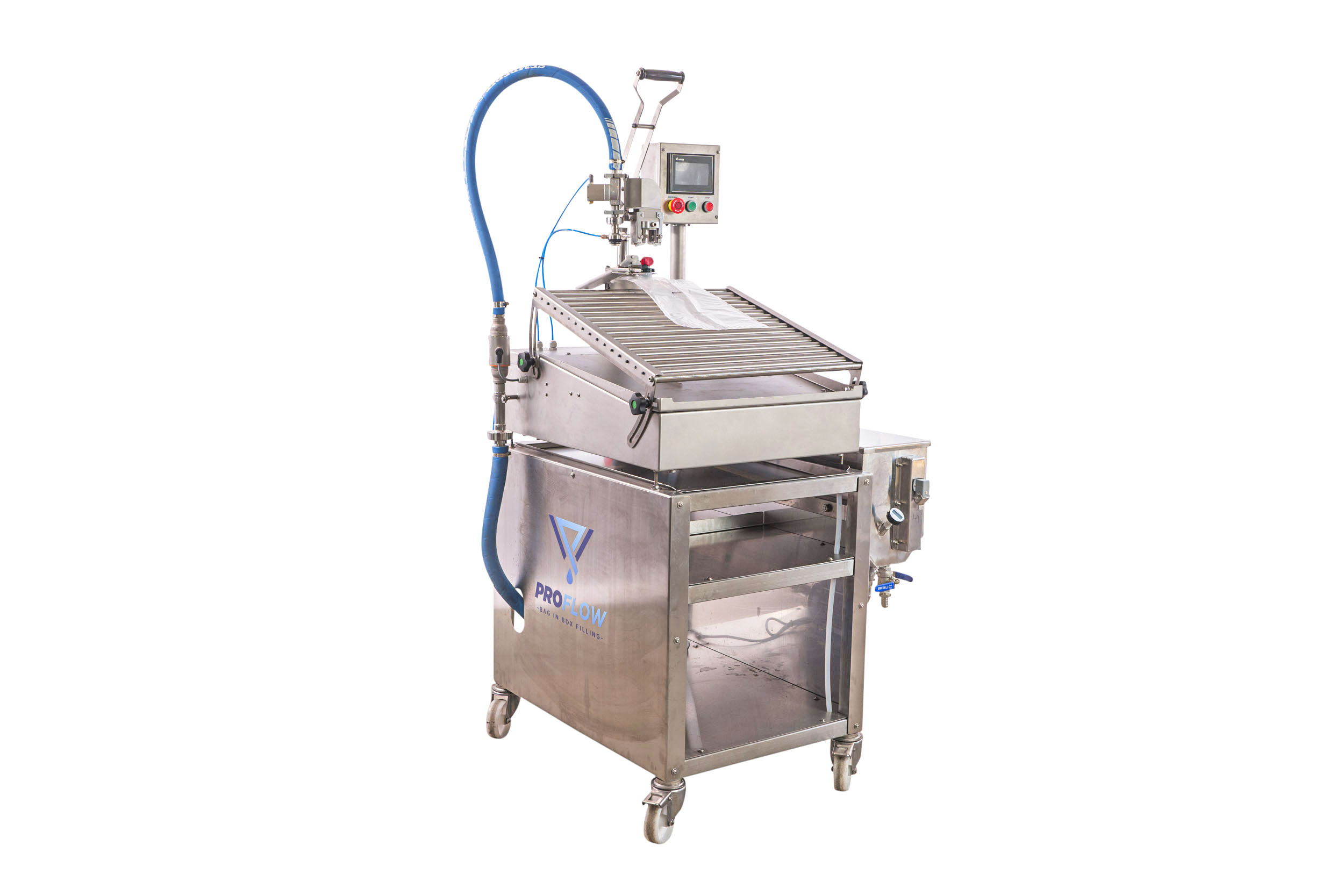

- The filler can have an optional detachable buffer tank for hot filling. It is mounted conveniently on the side of the machine for better inspection and easier washing process. The buffer tank also reduces liquid foaming during hot filling process.
-
- The buffer tank has an integrated liquid level control inside for regulation of overspill and level in the tank. Buffer tank also comes with a connection to our pasteurizer.
-
- Error of volume repeatability is just ± 0,5 %.
-
- The filler pre-vacuums the bags and pouches before filling.
-

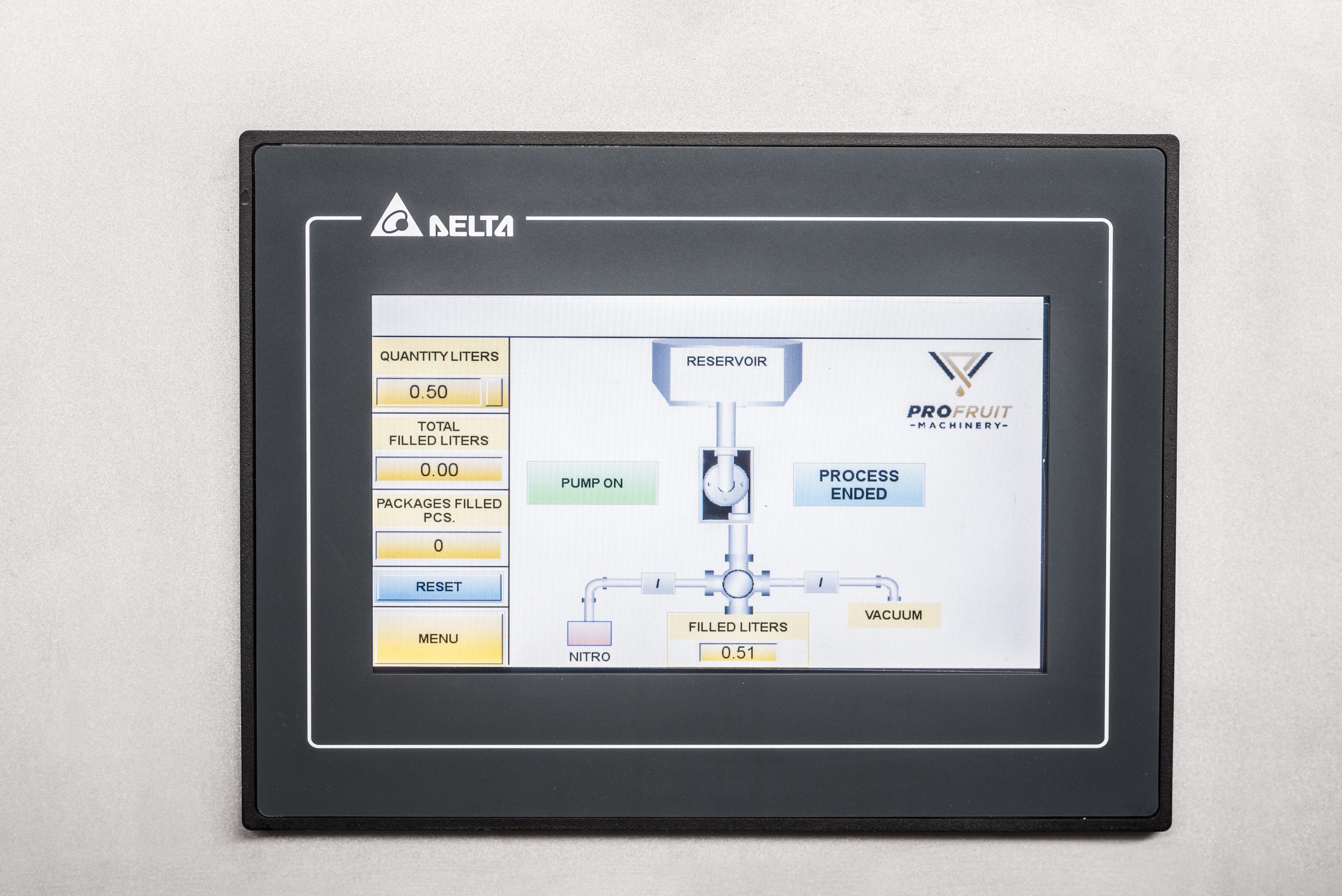

- Comes with touchscreen panel and multi-language menu.
-
- Easy-to-adjust filling table allows easily fill different volumes of Bag in Box & Stand up Pouch packages.
-

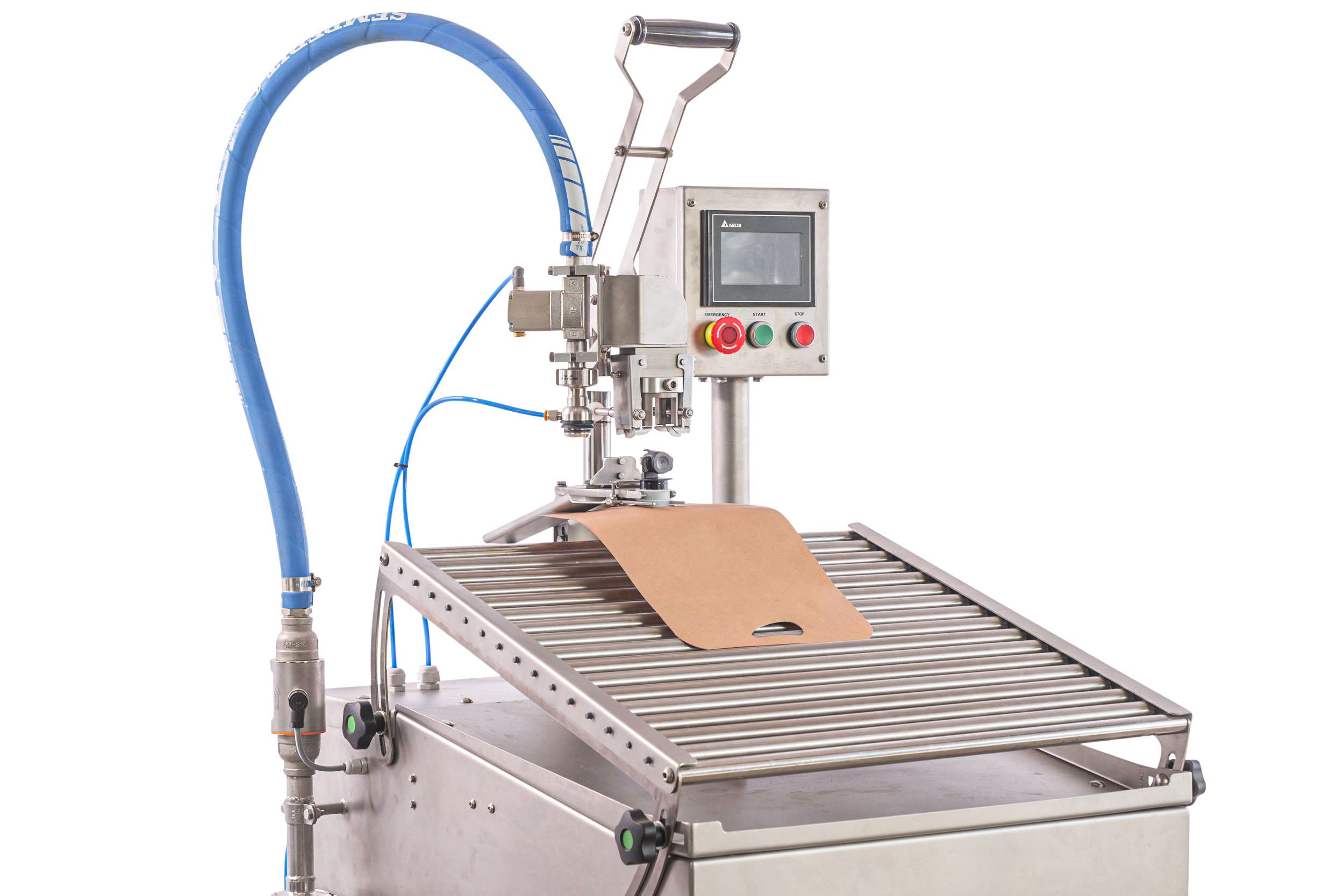

- Working surface of the table consists of conveyor rollers which are easy to clean and help for the smooth slide of the bags and pouches.
-
- The filler is easy to clean after work with external and CIP cleaning.
Our Bag in Box fillers work in perfect synergy with our Pasteurizers HEAT. They have a special connection between them which prevents liquid from overflowing and ensures easy work.
Interested in a fully-automatic option? Check out our Automatic Bag in Box filler AUTOFLOW.
